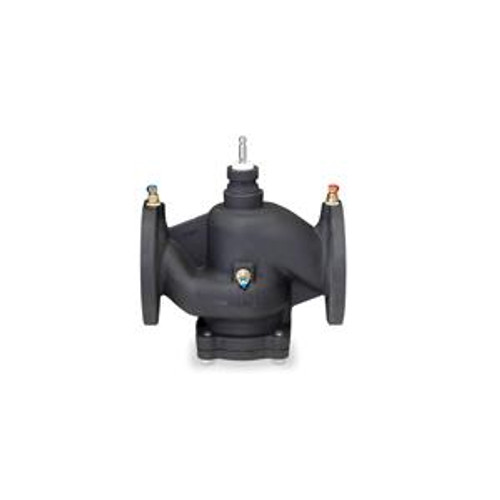

599-07335 - PICV, 2-1/2 inch, ANSI 250, 132 GPM max flow, w/ 3 P/T ports
Technical Specifications:
- Valve Size: 2.5 in
- Port Configuration: 2-Way Normally open
- End Connection: Flanged
- Material, valve body: Cast Iron
- Trim Material: Brass
- Material, inside set: Stem, Spring, Seat: Stainless Steel , Plug: Brass (DZR) , Regulator: Stainless Steel , Seals: EPDM (peroxide cured)
- Flow Characteristic: Linear
- Medium: Water , Water with anti-freeze
- Max GPM: 132 gpm
- Min GPM: 21 gpm
- Preset GPM: 132 gpm
- Pressure Class: ANSI 250
- Leakage rate: Class IV (0.01% of Cv)
- Rangeability: = 100:1
- Max. Inlet Pressure (absolute), Liquid: 200 psi
- Max. Differential Pressure, Liquid: 90 psi
- Medium temperature: 34…250 ºF
- Stroke: 3/4 in., 20 mm
- Close-off Pressure: 100 psi
- Dimensions (W x H x D): 11.5 x 8.37 x 7.48 in
Product Literature:
Brand: Siemens
SKU: 599-07335
