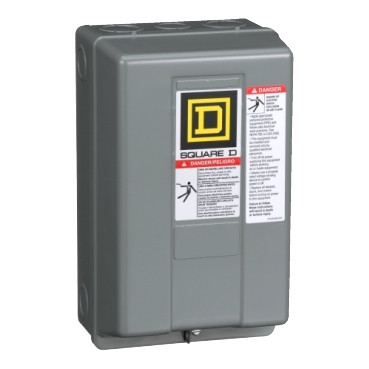

Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. Type S contactors have ratings up to 810 amperes. This 3 pole NEMA Size 1 non-reversing contactor has a 27 ampere rating. Three phase NEMA Size 1 contactors have 7.5 HP at 200 and 230 VAC and 10 HP at 460 and 575 VAC ratings. This NEMA contactor has a 100 kA maximum SCCR rating per UL508A when protected by an appropriate circuit breaker or fuse. These contactors are available with replaceable coils in a wide variety of voltages. This contactor has a 110/120 VAC 50/60 Hz coil that is wired for separate control. This NEMA contactor is in a NEMA 1 general purpose enclosure. This enclosure is 10.00 inches tall, 5.98 inches wide and 5.28 inches deep. A wide variety of accessories are available for Type S contactors. Type S NEMA contactors are UL listed and CSA certified.
- Product Type : Contactor
- Product Range : 8502S
- Contactor Type : Non-reversing
- NEMA Size : 1
- Rated Current : 27 A
- Number of Poles : 3P
- Maximum Voltage Rating : 600 V AC
- Phase : 3 phase
- Horsepower Rating : 7.5 HP 200 V AC, 7.5 HP 230 V AC, 10 HP 460 V AC, 10 HP 575 V AC
- Coil Voltage : 120 V AC 60 Hz, 110 V AC 50 Hz
- Control Circuit Type : Separate control circuit
- Control Units : No control units
- Pilot Light : No indicator
- Auxiliary Contacts : Without
- Other Equipment : Fuse not supplied
- Terminal Type : Screw clamp terminals
- Height : 10.00 in (254 mm)
- Width : 5.98 in (152 mm)
- Depth : 5.28 in (134 mm)
- Enclosure Type : NEMA 1 painted sheet steel
- Certifications : UL listed file E78351 CCN NLDX, CSA
- Category : US10CP121192
- Discount Schedule : 0CP1
- GTIN : 785901866329
- Returnability : Yes
- Country of origin : MX
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 6.00 in (15.24 cm)
- Package 1 Width : 6.50 in (16.51 cm)
- Package 1 Length : 11.50 in (29.21 cm)
- Package 1 Weight : 6.42 lb(US) (2.912 kg)
- Warranty : 18 months
