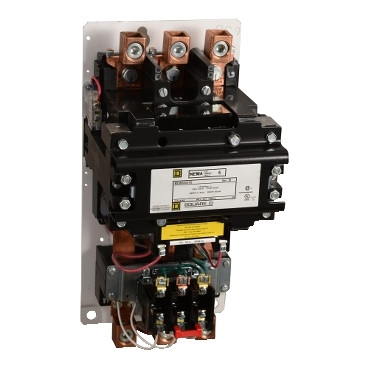

Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 5 non-reversing starter has a 270 ampere rating. This NEMA Size 5 motor starter has 3 phase ratings of 75 HP at 200 VAC, 100 HP at 230 VAC and 200 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions. This NEMA starter has a 10 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 440/480 VAC 50/60 Hz operating coil wired for common control. This NEMA starter is an open device without an enclosure. This starter is 17.56 inches tall, 8.56 inches wide and 8.75 inches deep. A wide variety of accessories are available for Type S starters. Type S NEMA starters are UL listed and CSA certified.
- Product Type : Motor starter
- Product Range : S
- Starter Type : Non reversing
- NEMA Size : 5
- Rated Current : 270 A
- Number of Poles : 3P
- Maximum Voltage Rating : 600 V AC
- Phase : 3 phase
- Type of Overload : Melting alloy 3
- Horsepower Rating : 75 HP 200 V AC, 100 HP 230 V AC, 200 HP 460 V AC, 200 HP 575 V AC
- Coil Voltage : 440 V AC 50 Hz, 480 V AC 60 Hz
- Control Circuit Type : Common control circuit
- Control Units : No control units
- Pilot Light : Without pilot light
- Auxiliary Contacts : Without
- Terminal Type : Screw clamp terminals
- Height : 17.56 in (446.02 mm)
- Width : 8.56 in (217.42 mm)
- Depth : 8.75 in (222.25 mm)
- Enclosure Type : Not rated (open device)
- Certifications : UL Listed, CSA, NEMA
- Category : US10CP121194
- Discount Schedule : 0CP1
- GTIN : 785901854739
- Returnability : Yes
- Country of origin : MX
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 10.10 in (25.654 cm)
- Package 1 Width : 11.00 in (27.94 cm)
- Package 1 Length : 19.60 in (49.784 cm)
- Package 1 Weight : 55.90 lb(US) (25.356 kg)
- Warranty : 18 months
