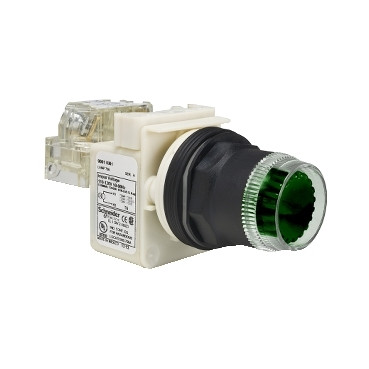

This Harmony 9001SK, modular illuminated flush green push button is supplied with a full guard. It has a double insulated plastic bezel and is supplied with a 110V AC transformer. This illuminated push button with transformer and full guard provides an ergonomic and visual interface for controlling your machines. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
- Range of Product : Harmony 9001SK
- Product or Component Type : Head for illuminated push-button
- Device short name : 9001SK
- bezel material : Plastic
- Mounting diameter : 1.18 in (30 mm)
- Shape of signaling unit head : Octagonal
- Operator additional information : Plastic guard
- Bulb base : BA 9s
- Light block supply : Via transformer 120 V AC 50/60 Hz
- Contacts type and composition : Without contact block
- Product Certifications : CE, UL listed file E42259 CCN NKCR, CSA LR24590 class 3211 03
- IP degree of protection : IP64
- NEMA degree of protection : NEMA 1/2/3/3R/4/4X/6/12/13
- Cap/operator or lens colour : Green
- [Us] rated supply voltage : 110...120 V
- Light block supply : Via integral transformer
- Operator profile : Flush
- Type of operator : Spring return
- Supply frequency : 50...60 Hz
- Size : 30 mm
- Light source : Incandescent bulb
- Category : US10CS121429
- Discount Schedule : 0CS1
- GTIN : 785901820932
- Returnability : Yes
- Country of origin : MX
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 2.21 in (5.601 cm)
- Package 1 Width : 3.66 in (9.299 cm)
- Package 1 Length : 1.81 in (4.6 cm)
- Package 1 Weight : 6.56 oz (185.973 g)
- Warranty : 18 months
