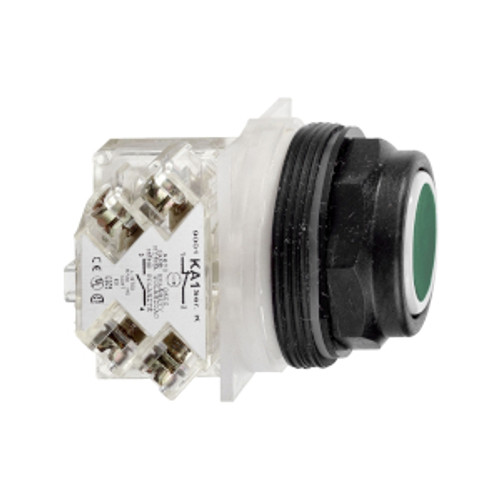

PUSHBUTTON 600VAC 10AMP 30MM SK +OPTIONS
- [Icm] rated short-circuit making capacity : 0.1 kA 600 V DC-13~~
- [Icm] rated short-circuit making capacity : 0.27 kA 250 V DC-13
- [Icm] rated short-circuit making capacity : 0.55 kA 125 V DC-13
- [Icm] rated short-circuit making capacity : 12 kA 600 V AC-15, 7200 VA
- [Icm] rated short-circuit making capacity : 15 kA 480 V AC-15, 7200 VA
- [Icm] rated short-circuit making capacity : 30 kA 240 V AC-15, 7200 VA
- [Icm] rated short-circuit making capacity : 60 kA 120 V AC-15, 7200 VA
- [Ie] rated operational current : 0.55 A 125 V, DC-13, A600-Q600
- [Ie] rated operational current : 3 A 240 V, AC-15, A600-Q600
- [Ith] conventional free air thermal current : 10 A
- [Ui] rated insulation voltage : 250 V 3)IEC 60947-1
- [Uimp] rated impulse withstand voltage : 2.5 kV IEC 60947-1
- bezel material : Plastic
- Brand : Schneider Electric
- By Schneider : Yes
- cap/operator or lens colour : Green
- Connections - Terminals : Screw clamp terminals 1 x 0.22...2 x 1.5 mm² IEC 60947-1
- Contact Operation : Standard
- Contacts Material : Silver alloy contacts
- Contacts Type And Composition : 1 NO
- Device Presentation : Complete product
- Device Short Name : 9001SK
- electrical shock protection class : Class II conforming to IEC 61140
- Final Result for Flywheel performance tracking : Non Flywheel
- Global Keywords : 2-position
- Global Keywords : 30mm Mounting Diameter
- Global Keywords : 9001SK
- Global Keywords : Contact block
- Global Keywords : Corrosion Resistant
- Global Keywords : Double insulated plastic bezel
- Global Keywords : Dust resistant
- Global Keywords : Flush
- Global Keywords : Full Guard
- Global Keywords : Green
- Global Keywords : Harmony
- Global Keywords : Impact resistant
- Global Keywords : NO contact
- Global Keywords : Plastic
- Global Keywords : Push Button
- Global Keywords : Pushbutton
- Global Keywords : Push-Button
- Global Keywords : Round Shape
- Global Keywords : Schneider electric
- Global Keywords : Screw-Clamp
- Global Keywords : Spring return
- Global Keywords : Water Resistant
- IP Degree of Protection : IP66 IEC 60529
- Manufacturer : Schneider Electric
- Mechanical Durability : 5000000 cycles
- mounting diameter : 1.2 in (30 mm)
- NEMA degree of protection : NEMA 1
- NEMA degree of protection : NEMA 12
- NEMA degree of protection : NEMA 13
- NEMA degree of protection : NEMA 2
- NEMA degree of protection : NEMA 3
- NEMA degree of protection : NEMA 3R
- NEMA degree of protection : NEMA 4
- NEMA degree of protection : NEMA 4X
- Net Weight : 0.190 lb(US) (0.086 kg)
- operating position : Any position
- operator additional information : Plastic guard
- operator profile : flush
- operator profile : Green flush, unmarked
- Packaging made with recycled cardboard : Yes
- Packaging without single use plastic : Yes
- positive opening : Without
- Product Certifications : NEMA
- Product Certifications : UL 508
- Product Or Component Type : Push-button
- Protective Treatment : TC
- rated breaking capacity : 0.1 kA 600 V DC-13
- rated breaking capacity : 0.27 kA 250 V DC-13
- rated breaking capacity : 0.55 kA 125 V DC-13
- rated breaking capacity : 1.2 kA 600 V AC-15, 720 VA
- rated breaking capacity : 1.5 kA 480 V AC-15, 720 VA
- rated breaking capacity : 3 kA 240 V AC-15, 720 VA
- rated breaking capacity : 6 kA 120 V AC-15, 720 VA
- shape of screw head : Cross slotted
- shape of signaling unit head : Octagonal
- shock resistance : 50 gn IEC 60068-2-27
- short-circuit protection : 10 A cartridge fuse IEC 60947-5-1
- size : 30 mm
- Standards : CSA C22.2 No 14
- Standards : IEC 60947-1
- Standards : IEC 60947-5-1
- Standards : IEC 60947-5-4
- Standards : JIS C 4520
- Standards : JIS C 852
- Sustainable packaging : Yes
- Take-back : No
- Temperature Ambient Operating Range : -13…158 °F (-25…70 °C)
- Temperature Shipping and Storage Range : -40…158 °F (-40…70 °C)
- Tightening Torque : 7.08 lbf.in (0.8 N.m) IEC 60947-1
- Toxic heavy metal free : Yes
- Type Of Operator : spring return
- UNSPSC Classification v19 : 39122216
- UNSPSC Classification v23 : 39122216
- vibration resistance : 7 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
- Warranty : 18 months
