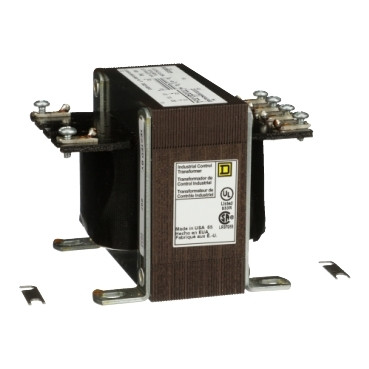

The Square D™ by Schneider Electric Type EO Industrial Control Transformers are designed with exceptional voltage regulation and low temperature rise. This transformer is a single phase 100VA transformer designed for 240x480VAC primary with a 120VAC secondary. (The unit also supports 230x460VAC to 115VAC and 220x440VAC to 110VAC.) It is compliant with UL and CSA standards verified by third party UL carrying the cUL, UL labels, and self certified to the EN standards carrying a CE mark.
- Product or Component Type : Industrial Control Transformer
- Range of Product : EO
- Phase : 1 phase
- Rated power in VA : 100 VA
- Primary Voltage : 240 x 480 V, 230 x 460 V, 220 x 440 V
- Secondary Voltage : 120 V, 115 V, 110 V
- Temperature rise : 80 °C
- Electrical Connection : Screw clamp terminals
- Height : 3.78 in (96 mm)
- Width : 3.39 in (86 mm)
- Depth : 2.80 in (71 mm)
- Net Weight : 3.75 lb(US) (1.7 kg)
- Product Certifications : UL Listed, CE, CSA
- NEMA Degree of Protection : Not rated (open device)
- Insulation temperature : 266 °F (130 °C)
- Category : US10CP816208
- Discount Schedule : 0CP8
- GTIN : 785901837138
- Returnability : Yes
- Country of origin : US
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 3.80 in (9.652 cm)
- Package 1 Width : 4.20 in (10.668 cm)
- Package 1 Length : 4.00 in (10.16 cm)
- Package 1 Weight : 3.90 lb(US) (1.769 kg)
- Warranty : 18 months
