A9E18038

[Ie] rated operational current :

20 A~~

[Ue] rated operational voltage :

250 V AC

9 mm pitches :

2

Brand :

Schneider Electric

By Schneider :

Yes

Circularity Profile :

No need of specific recycling operations

Color :

White

comb busbar and distribution block compatibility :

Upside Clario

comb busbar and distribution block compatibility :

Upside Librio

comb busbar and distribution block compatibility :

Upside ProDis

Connections - Terminals :

Staggered tunnel terminal1 0.0008 in² (0.5 mm²) flexible

Connections - Terminals :

Staggered tunnel terminal1 0.0008 in² (0.5 mm²) flexible with ferrule

Connections - Terminals :

Staggered tunnel terminal1 0.0008 in² (0.5 mm²) rigid

Connections - Terminals :

Staggered tunnel terminal2 0.004 in² (2.5 mm²) flexible

Connections - Terminals :

Staggered tunnel terminal2 0.004 in² (2.5 mm²) flexible with ferrule

Connections - Terminals :

Staggered tunnel terminal2 0.004 in² (2.5 mm²) rigid

Contacts Type And Composition :

1 NO

Control Type :

1 push-button Gray

Depth :

2.8 in (71.5 mm)

Device Short Name :

IPB

Electrical Durability :

AC-22 30000 cycles AC 50/60 Hz

Final Result for Connectable :

Not connectable

Final Result for Flywheel performance tracking :

Non Flywheel

Global Keywords :

Acti9 push-button

Global Keywords :

Indicator light

Global Keywords :

Ipb push-button

Global Keywords :

Modular push-button

Global Keywords :

Push-Button

Global Keywords :

Push-button indicator light

Global Keywords :

Single push-button

Height :

3.2 in (82 mm)

Local Signalling :

LED indicator green, 100000 h 0.3 W)

Manufacturer :

Schneider Electric

Market Segment :

Residential

Market Segment :

Small commercial

Mounting Mode :

Fixed

Mounting Support :

35 mm symmetrical DIN rail

Number of Units in Package 2 :

12

Number of Units in Package 3 :

108

Package 2 GTIN :

13606480088305

Package 2 Height :

3.15 in (8.000 cm)

Package 2 Length :

9.06 in (23.000 cm)

Package 2 Weight :

21.093 oz (598.000 g)

Package 2 width :

3.94 in (10.000 cm)

Package 3 GTIN :

43606480088306

Package 3 Height :

11.81 in (30.000 cm)

Package 3 Length :

15.75 in (40.000 cm)

Package 3 Weight :

12.943 lb(US) (5.871 kg)

Package 3 width :

11.81 in (30.000 cm)

Packaging made with recycled cardboard :

No

Packaging without single use plastic :

Yes

Product Name :

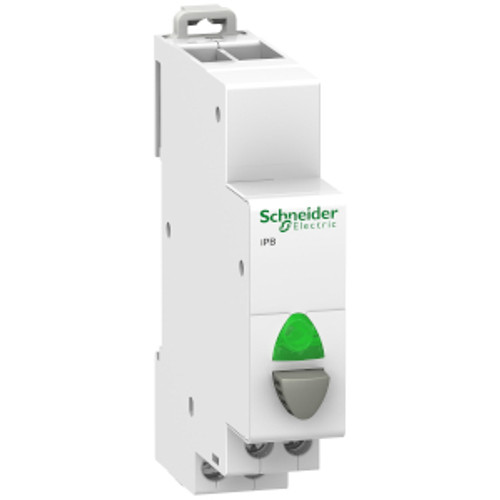

Acti9 iPB

Product Or Component Type :

Push-button

Range :

Acti9

Relative Humidity :

95 % 131 °F (55 °C)

SCIP Number :

1f68db37-1d35-43e3-91db-a07321e19eb2

signalling circuit voltage :

AC 12...48 V 50/60 Hz

signalling circuit voltage :

DC 12...48 V

Standards :

IEC 60669-1

Standards :

IEC 60947-5-1

Take-back :

No

Temperature Ambient Operating Range :

-31…158 °F (-35…70 °C)

Temperature Shipping and Storage Range :

-40…176 °F (-40…80 °C)

Tightening Torque :

8.9 lbf.in (1 N.m)

Toxic heavy metal free :

Yes

tropicalisation :

2

Unit Type of Package 2 :

BB1

Unit Type of Package 3 :

S03

UNSPSC Classification v19 :

39121603

UNSPSC Classification v23 :

39121603

Volume of Package 2 :

1840.000 cm3

Volume of Package 3 :

36000.000 cm3

Warranty :

18 months

Width :

0.7 in (18 mm)

Wire Stripping Length :

0.4 in (9 mm)

PDF :

https://iportal2.schneider-electric.com/Contents/docs/SQD-A9E18038_DATA%20SHEET.PDF
