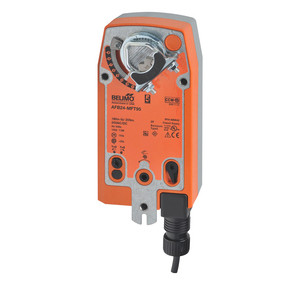

Damper Actuator, 180 in-lb [20 Nm], Spring return, AC/DC 24 V, modulating, communicative, Hybrid, Cloud, BACnet IP, Modbus TCP
- Voltage AC/DC : AC/DC 24 V
- Power Consumption (Running) : 8.5 W
- Power Consumption (Holding) : 5 W
- Power Consumption For Wire Sizing : 8.5 VA
- Torque : 180 in-lb [20 Nm]
- Control Type : Communicative ; BACnet IP ; Modbus TCP ; Cloud
- Direction Of Motion Motor : selectable by ccw/cw mounting
- Direction of Rotation (Fail-Safe) : Reversible with cw/ccw mounting
- Manual Override : 5 mm hex crank (3/16" Allen), supplied
- Angle of Rotation : 95
- Running Time (Motor) : 150 s / 90°
- Running Time range (Motor) : 70...220 s
- Running Time (Fail-safe) : <20 s
- Protection category : IP54
- Degree Of Protection NEMA : NEMA 1
- Enclosure Type : UL Enclosure Type 1
- Ambient Tempreture : -22...122°F [-30...50°C]
