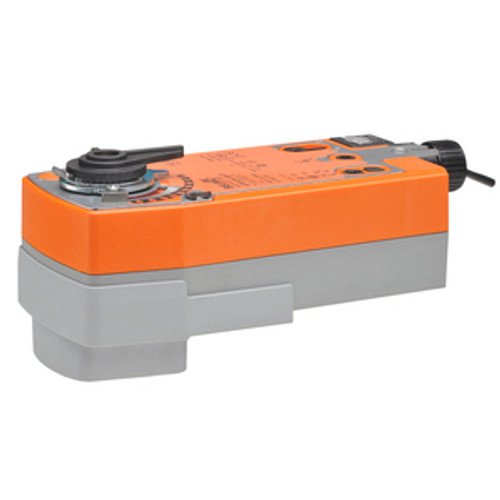

ConfigurableValve Actuator, Spring return, AC/DC 24 V, 0...135 Ω, MFT/programmable
- Voltage AC/DC : AC/DC 24 V
- Power Consumption (Running) : 7.5 W
- Power Consumption (Holding) : 3 W
- Power Consumption For Wire Sizing : 10 VA
- Control Type : 0...135 Ω
- Direction Of Motion Motor : selectable with switch
- Direction of Rotation (Fail-Safe) : Reversible with cw/ccw mounting
- Manual Override : 5 mm hex crank (3/16" Allen), supplied
- Angle of Rotation : 90
- Running Time (Motor) : 150 s / 90°
- Running Time range (Motor) : 70...220 s
- Running Time (Fail-safe) : <20 s
- Protection category : IP54
- Degree Of Protection NEMA : NEMA 2
- Enclosure Type : UL Enclosure Type 2
