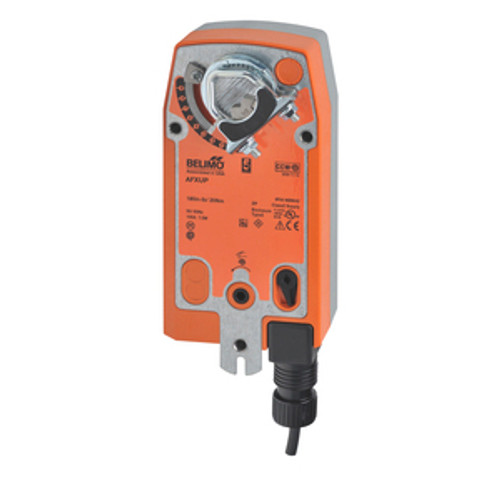

Belimo product AFXUP technical information.
Technical Specifications:
- Voltage AC/DC: AC 24...240 V / DC 24...125 V
- Power Consumption (Running): 7 W
- Power Consumption (Holding): 3.5 W
- Torque: 180 in-lb [20 Nm]
- Control Type: On/Off
- Direction Of Motion Motor: selectable by ccw/cw mounting
- Direction of Rotation (Fail-Safe): Reversible with cw/ccw mounting
- Manual Override: 5 mm hex crank (3/16"" Allen), supplied
- Angle of Rotation: 95
- Running Time (Motor): 75 s / 90°
- Running Time (Fail-safe): <20 s
- Protection category: IP54
- Degree Of Protection NEMA: NEMA 2
- Enclosure Type: UL Enclosure Type 2
- Ambient Temperature: -22...122°F [-30...50°C]
Product Literature:
- Download product literature 1
- Download product literature 2
- Download product literature 3
- Download product literature 4
- Download product literature 5
Brand: Belimo
SKU: AFXUP
