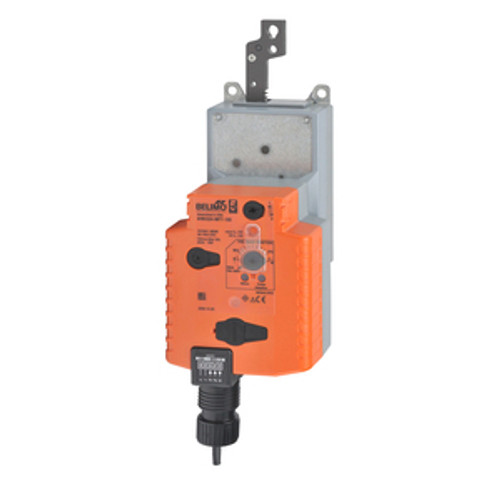

Damper Actuator, 200 N [45 lbf], Non fail-safe, AC/DC 24 V, MFT/programmable, 2...10 V
- Voltage AC/DC : AC/DC\xa024\xa0V
- Power Consumption (Running) : 13 W
- Power Consumption (Holding) : 1.5 W
- Power Consumption For Wire Sizing : 23 VA
- Force : 200\xa0N [45\xa0lbf]
- Control Type : MFT/Programmable
- Direction Of Motion Motor : reversible with switch
- Manual Override : External push button
- Stroke : 1.6...4.0"\xa0[40...100\xa0mm]
- Running Time (Motor) : 7\xa0s / 100 mm
- Protection category : IP54
- Degree Of Protection NEMA : NEMA\xa02
- Enclosure Type : UL\xa0Enclosure\xa0Type\xa02
- Ambient Temperature : -22...122°F [-30...50°C]
