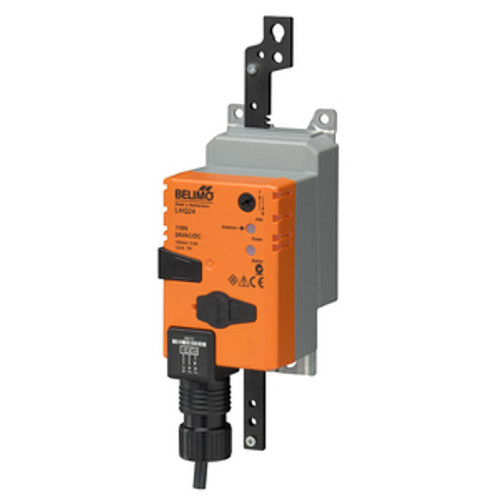

Damper Actuator, 100 N [22 lbf], Non fail-safe, AC/DC 24 V, MFT/programmable, 2...10 V
Technical Specifications:
- Voltage AC/DC: AC/DC\xa024\xa0V
- Power Consumption (Running): 13 W
- Power Consumption (Holding): 1.5 W
- Power Consumption For Wire Sizing: 18 VA
- Force: 100\xa0N [22\xa0lbf]
- Control Type: MFT/Programmable
- Direction Of Motion Motor: reversible with switch
- Manual Override: External push button
- Stroke: 1.6...4.0"\xa0[40...100\xa0mm]
- Running Time (Motor): 3.5\xa0s / 100 mm
- Running Time range (Motor): 3.5...15\xa0s\xa0/\xa0100\xa0mm
- Protection category: IP54
- Degree Of Protection NEMA: NEMA\xa02
- Enclosure Type: UL\xa0Enclosure\xa0Type\xa02
- Ambient Temperature: -22...122°F [-30...50°C]
Product Literature:
- Download product literature 1
- Download product literature 2
- Download product literature 3
- Download product literature 4
- Download product literature 5
- Download product literature 6
- Download product literature 7
- Download product literature 8
Brand: Belimo
SKU: LHQB24-MFT-100
