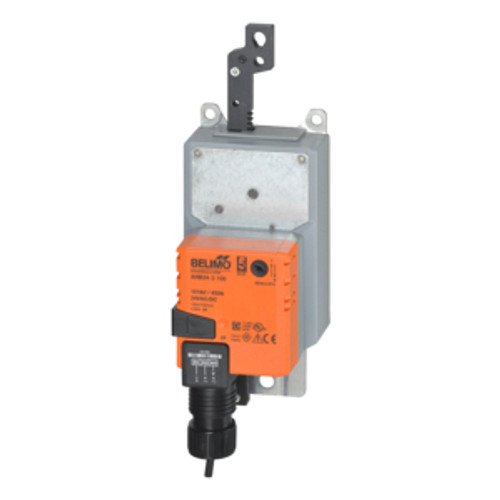

ConfigurableDamper Actuator, 450 N [100 lbf], Non fail-safe, AC 100...240 V, On/Off, Floating point
- Voltage AC/DC : AC 100...240 V
- Power Consumption (Running) : 2.5 W
- Power Consumption (Holding) : 0.5 W
- Power Consumption For Wire Sizing : 4.5 VA
- Force : 450 N [100 lbf]
- Control Type : Floating/3-point
- Direction Of Motion Motor : reversible with switch
- Manual Override : External push button
- Stroke : 8" [200 mm]
- Running Time (Motor) : 150 s / 100 mm
- Protection category : IP54
- Degree Of Protection NEMA : NEMA 2
- Enclosure Type : UL Enclosure Type 2
- Ambient Tempreture : -22...122°F [-30...50°C]
