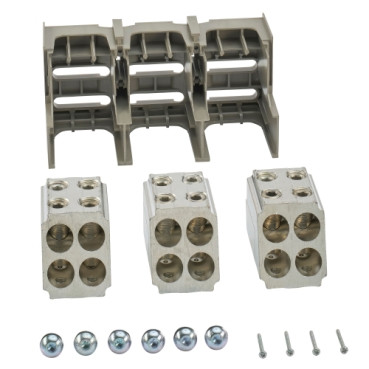

PowerPacT M, P, and R-Frame circuit breakers offer a whole range of field installable accessories, allowing modifying the circuit breaker at any time in the design and build cycle. This mechanical lug kit is for PowerPacT P circuit breakers. These aluminum lugs are rated for 800A to 1200A. The lugs accept 3/0 AWG to 500kcmil aluminum and copper conductors. These lugs comply with UL and CSA standards. Common Design Features, Mounting holes, door trim, and handle accessories.
- Range of Product : PowerPact P
- Product or Component Type : Mechanical lug
- Accessory / separate part category : Connection accessory
- Quantity per Set : Set of 3
- Line Rated Current : 1200 A
- Material : Aluminium
- Mounting Mode : Unit mount
- Fixing Mode : By screws
- Location of connection : Upstream, Downstream
- AWG gauge : AWG 3/0...500 kcmil aluminium/copper
- Kcmil size : 500 kcmil
- Mounting Location : Downstream, Upstream
- Tightening torque : 442.54 lbf.in (50 N.m) 0.15…0.37 in² (95…240 mm²) (AWG 3/0...500 kcmil)
- Product Certifications : CSA, UL
- Category : US10DE201250
- Discount Schedule : 0DE2
- GTIN : 785901506195
- Returnability : Yes
- Country of origin : US
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 5.70 in (14.478 cm)
- Package 1 Width : 8.00 in (20.32 cm)
- Package 1 Length : 11.80 in (29.972 cm)
- Package 1 Weight : 4.17 lb(US) (1.891 kg)
- Warranty : 18 months
