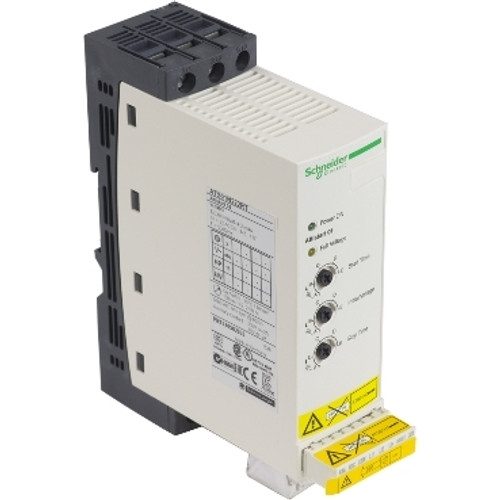

Altistart 01 Soft Start (ATS01)|For Asynchronous Motor|lcL Starter Rating: 22A|US Rated Supply Voltage: 460-480V|Motor Power Horsepower: 10 HP|Network Number of Phases: Triple-phase|Integrated Bypass|Assembly Style: with Heat Sink
- [Uc] control circuit voltage : Built into the starter~~
- [Ue] rated operational voltage : 460...480 V 10 hp
- [Ue] rated operational voltage : 460...480 V 15 hp
- [Us] rated supply voltage : 460...480 V - 10...10 %
- Ambient Air Temperature For Operation : 104…122 °F (40…50 °C) (with current derating of 2 % per °C)
- Ambient Air Temperature For Operation : 14…104 °F (-10…40 °C) (without derating)
- Ambient Air Temperature For Storage : -13…158 °F (-25…70 °C) EN/IEC 60947-4-2
- assembly style : With heat sink
- Brand : Schneider Electric
- By Schneider : Yes
- Current Consumption : 110 A at nominal load
- deceleration time symb : Adjustable from 1 to 10 s
- Depth : 5.2 in (131 mm)
- Device Short Name : ATS01
- Discrete Input Logic : Positive LI1, LI2, BOOST 13 V, >= 0.5 mA
- Discrete Input Type : Logic LI1, LI2, BOOST) stop, run and boost on start-up functions
- Discrete Input Voltage : 24...40 V
- Discrete Output Current : 2 A DC-13
- Discrete Output Current : 3 A AC-15
- Discrete Output Type : Open collector logic LO1 end of starting signal
- Discrete Output Type : Relay outputs R1A, R1C NO
- Discrete Output Voltage : 24 V 6...30 V) open collector logic
- Display Type : 1 LED Green)starter powered up
- Display Type : 1 LED Yellow)nominal voltage reached
- Electrical Connection : 4 mm screw clamp terminal - flexible with cable end 2 1...6 mm² AWG 10 power circuit
- Electrical Connection : 4 mm screw clamp terminal - flexible without cable end 1 1.5...10 mm² AWG 8 power circuit
- Electrical Connection : 4 mm screw clamp terminal - flexible without cable end 2 1.5...6 mm² AWG 10 power circuit
- Electrical Connection : 4 mm screw clamp terminal - rigid 1 1...10 mm² AWG 8 power circuit
- Electrical Connection : 4 mm screw clamp terminal - rigid 2 1...6 mm² AWG 10 power circuit
- Electrical Connection : Screw connector - flexible with cable end 1 0.5...1.5 mm² AWG 16 control circuit
- Electrical Connection : Screw connector - flexible without cable end 1 0.5...2.5 mm² AWG 14 control circuit
- Electrical Connection : Screw connector - flexible without cable end 2 0.5...1.5 mm² AWG 16 control circuit
- Electrical Connection : Screw connector - rigid 2 0.5...1 mm² AWG 17 control circuit
- Electrical Connection : Screw connector - rigid without cable end 1 0.5...2.5 mm² AWG 14 control circuit
- Electromagnetic Compatibility : Conducted and radiated emissions level B conforming to CISPR 11
- Electromagnetic Compatibility : Conducted and radiated emissions level B conforming to IEC 60947-4-2
- Electromagnetic Compatibility : Damped oscillating waves level 3 conforming to IEC 61000-4-12
- Electromagnetic Compatibility : Electrostatic discharge level 3 conforming to IEC 61000-4-2
- Electromagnetic Compatibility : EMC immunity level 3 conforming to EN 50082-1
- Electromagnetic Compatibility : EMC immunity level B conforming to EN 50082-2
- Electromagnetic Compatibility : Harmonics level 3 conforming to IEC 1000-3-2
- Electromagnetic Compatibility : Harmonics level 3 conforming to IEC 1000-3-4
- Electromagnetic Compatibility : Immunity to conducted interference caused by radio-electrical fields level 3 conforming to IEC 61000-4-6
- Electromagnetic Compatibility : Immunity to electrical transients level 4 conforming to IEC 61000-4-4
- Electromagnetic Compatibility : Immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3
- Electromagnetic Compatibility : Micro-cuts and voltage fluctuation conforming to IEC 61000-4-11
- Electromagnetic Compatibility : Voltage/current impulse level 3 conforming to IEC 61000-4-5
- Final Result for Flywheel performance tracking : Non Flywheel
- Function Available : Integrated bypass
- Global Keywords : 3-phase
- Global Keywords : 440V
- Global Keywords : 460V
- Global Keywords : 480V
- Global Keywords : Adjustable
- Global Keywords : Altistart 01
- Global Keywords : Asynchronous motors
- Global Keywords : ATS01
- Global Keywords : Controlled deceleration
- Global Keywords : Controlled starting
- Global Keywords : DIN rail mounted
- Global Keywords : Initial voltage
- Global Keywords : Integrated bypass
- Global Keywords : LED Indicator
- Global Keywords : Plugin control terminal
- Global Keywords : Ramp down
- Global Keywords : Ramp up
- Global Keywords : Reduced voltage start
- Global Keywords : Schneider electric
- Global Keywords : Simple machines
- Global Keywords : Slim
- Global Keywords : Small power motors
- Global Keywords : Soft start
- Global Keywords : Soft starter
- Global Keywords : Soft stop
- Global Keywords : Soft-start/soft stop
- Global Keywords : Softstarter
- Global Keywords : Soft-starter
- Global Keywords : Start time
- Global Keywords : Starting ramp
- Global Keywords : Starting torque limiter
- Global Keywords : Stop time
- Global Keywords : Stopping ramp
- Global Keywords : Three phase
- Height : 6.06 in (154 mm)
- IcL starter rating : 22 A
- IP Degree of Protection : IP20
- Manufacturer : Schneider Electric
- Marking : CE
- Maximum Horse Power Rating : 10 hp, 3 phase 460...480 V
- Maximum Horse Power Rating : 15 hp, 3 phase 460...480 V
- Maximum Switching Current : Relay outputs 2 A 250 V AC cos phi = 0.5 20 ms inductive
- Maximum Switching Current : Relay outputs 2 A 30 V DC cos phi = 0.5 20 ms inductive
- minimum switching current : 10 mA 6 V DC relay outputs
- Net Weight : 1.23 lb(US) (0.56 kg)
- Network Frequency : 47.5...63 Hz
- Number of Units in Package 2 : 14
- Operating Altitude : > 3280.84 ft (1000 m) with current derating of 2.2 % per additional 100 m
- operating position : Vertical +/- 10 degree
- Package 2 GTIN : 23389110667329
- Package 2 Height : 11.81 in (30.000 cm)
- Package 2 Length : 15.75 in (40.000 cm)
- Package 2 Weight : 21.991 lb(US) (9.975 kg)
- Package 2 width : 11.81 in (30.000 cm)
- Packaging made with recycled cardboard : Yes
- Packaging without single use plastic : Yes
- Phase : 3 phase
- Pollution Degree : 2 EN/IEC 60947-4-2
- power dissipation in W : 124.5 W in transient state
- power dissipation in W : 4.5 W at full load and at end of starting
- Product Certifications : CCC
- Product Certifications : CSA
- Product Certifications : C-tick
- Product Certifications : GOST
- Product Certifications : UL
- Product Destination : Asynchronous motors
- Product Or Component Type : Soft starter
- Product Specific Application : Simple machine
- REACh free of SVHC : Yes
- Relative Humidity : 5…95 % without condensation or dripping water EN/IEC 60068-2-3
- shock resistance : 15 gn 11 ms EN/IEC 60068-2-27
- Standards : EN/IEC 60947-4-2
- starting time : 1 s / 100
- starting time : 10 s / 10
- starting time : 5 s / 20
- starting time : Adjustable from 1 to 10 s
- Supply Frequency : 50...60 Hz - 5...5 %
- supply voltage limits : 414…528 V
- Take-back : No
- Tightening Torque : 16.8…22.1 lbf.in (1.9…2.5 N.m)
- Tightening Torque : 4.4 lbf.in (0.5 N.m)
- Toxic heavy metal free : Yes
- type of start : Start with voltage ramp
- Unit Type of Package 2 : S03
- UNSPSC Classification v19 : 39121521
- UNSPSC Classification v23 : 39121521
- utilisation category : AC-53B EN/IEC 60947-4-2
- vibration resistance : 1 gn (f= 13…150 Hz) conforming to EN/IEC 60068-2-6
- vibration resistance : 1.5 mm peak to peak (f= 3…13 Hz) conforming to EN/IEC 60068-2-6
- Volume of Package 2 : 36000.000 cm3
- Warranty : 18 months
- Width : 1.8 in (45 mm)
