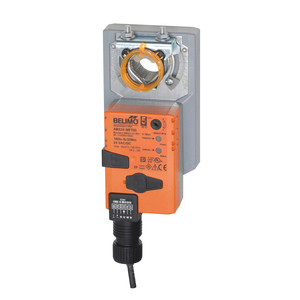

ConfigurableDamper Actuator, 180 in-lb [20 Nm], Non fail-safe, AC/DC 24 V, MFT/programmable, 2...10 V
- Voltage AC/DC : AC/DC 24 V
- Power Consumption (Running) : 4 W
- Power Consumption (Holding) : 1.25 W
- Power Consumption For Wire Sizing : 6 VA
- Torque : 180 in-lb [20 Nm]
- Control Type : MFT/Programmable
- Direction Of Motion Motor : selectable with switch 0/1
- Manual Override : External push button
- Angle of Rotation : 95
- Running Time (Motor) : 35 s / 90°
- Running Time range (Motor) : 35...120 s
- Protection category : IP54
- Degree Of Protection NEMA : NEMA 2
- Enclosure Type : UL Enclosure Type 2
- Ambient Temperature : -22...122°F [-30...50°C]
