BX1500M

$287.57
(No reviews yet) Write a Review
SKU:
BX1500M
Adding to cart… The item has been added

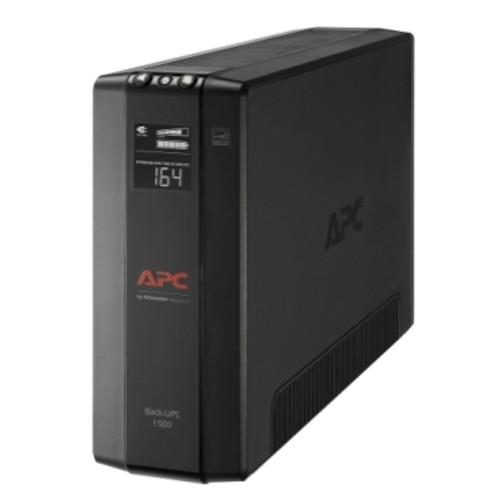

This APC Back-UPS offers power and surge protection for wireless networks, computers, gaming consoles and other electronics in your home or business. The 1500VA tower UPS has 10 total outlets, 5 of which are battery backup, and 5 that are surge protection only. The UPS has a surge energy rating of 789 Joules. It features Automatic Voltage Regulation to correct voltage dips and surges to proper levels. This UPS has a 3-year warranty and CE product certification.
Lead time :
Usually in Stock
Main Input Voltage :
120 V
Main Output Voltage :
120 V
Kw Rating :
900 W
Rated power in VA :
1500 VA
Product or Component Type :
Uninterruptible power supply (UPS)
Input Connection Type :
NEMA
output connection type :
5 NEMA 5-15R
5 NEMA 5-15R surge
Cable length :
6 ft (1.83 m)
Battery Type :
Lead-Acid battery
Run Time :
View Runtime Graph
Efficiency :
View Efficiency Graph
Included Battery Modules :
0
Battery Slots Empty :
0
Typical recharge time :
16 h
RBC Quantity :
1
Battery Charge Power (Watts) :
11 W rated
Extendable Run Time :
0
Replacement battery :
APCRBC124
Provided equipment :
User Manual
USB cable
RCBO
Number of power module free slots :
0
Number of power module filled slots :
0
Redundant :
No
Height :
9.84 in (25 cm)
Width :
3.94 in (10 cm)
Net Weight :
24.25 lb(US) (11 kg)
Mounting preference :
No preference
Mounting Mode :
Not rack-mountable
Two post mountable :
0
USB compatible :
No
Input Frequency :
60 Hz +/- 3 Hz
Efficiency at full load :
88...139 V
Maximum Input Current per Phase :
12 A
Switching current capacity :
15 A
Max Configurable Power (Watts) :
900 W
Output Frequency (sync to mains) :
60 Hz sync to mains
Topology :
Line Interactive
Maximum configurable power in VA :
1500 VA
Transfer Time :
8ms typical : 10 ms maximum
Equipment protection policy :
Lifetime : $250000
Ambient Air Temperature for Operation :
32…104 °F (0…40 °C)
Relative Humidity :
0…95 %
Operating altitude :
0...10000 ft
Ambient Air Temperature for Storage :
5…104 °F (-15…40 °C)
Storage Relative Humidity :
0…95 %
Acoustic level :
45 dBA
heat dissipation :
67.6 Btu/h
Surge energy rating :
789 J
GTIN :
731304331780
Unit Type of Package 1 :
PCE
Number of Units in Package 1 :
1
Package 1 Height :
13.70 in (34.8 cm)
Package 1 Width :
19.33 in (49.1 cm)
Package 1 Length :
8.94 in (22.7 cm)
Package 1 Weight :
28.00 lb(US) (12.7 kg)
SCC14 :
10731304331787
