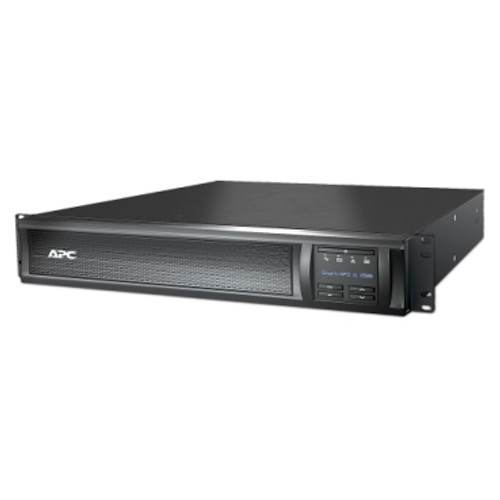

SMC1500-2UC

$1,092.46
(No reviews yet) Write a Review
SKU:
SMC1500-2UC
Adding to cart… The item has been added
This APC Smart-UPS is designed for small to medium business users to maintain business uptime and continuity. This 1440VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. The UPS comes with NEMA 5-15P input and 6x NEMA 5-15R outlets. This UPS offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The Smart-UPS C has an intuitive graphic LCD interface. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. This line interactive UPS operates in green mode for high operating efficiency. Connect to either monitoring software using the Port on the back of the device. The SMC has a 2-year warranty, and comes with a built-in lead-acid battery. This UPS provides surge protection against lightning strikes, power sags, brownouts and surges. This is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. This 900 watt UPS offers a green mode to ensure you are operating at the highest level of efficiency while it’s smart battery management maximizes performance. Automatic Voltage Regulation (AVR) adjusts voltages ensuring reliable power while preserving battery life. Predictive battery management provides an estimated date of when battery replacement is recommended. Package Contains UPS, Documentation CD, Installation guide, Rack mounting brackets, USB cable.
Lead time :
Usually in Stock
Main Input Voltage :
120 V
Other Input Voltage :
110 V
125 V
Main Output Voltage :
120 V
Other Output Voltage :
110 V
125 V
Kw Rating :
900 W
Rated power in VA :
1440 VA
Product or Component Type :
Uninterruptible power supply (UPS)
Input Connection Type :
NEMA 5-15P
output connection type :
6 NEMA 5-15R
Number of rack unit :
2U
Cable length :
8 ft (2.44 m)
Number of cables :
1
Battery Type :
Lead-Acid battery
Run Time :
View Runtime Graph
Efficiency :
View Efficiency Graph
Extendable Run Time :
0
Included Battery Modules :
0
Battery Slots Empty :
0
Typical recharge time :
3 h
RBC Quantity :
1
Battery Life :
4…6 year(s)
Replacement battery :
APCRBC157
Battery Charge Power (Watts) :
86 W rated
Number of power module filled slots :
0
Number of power module free slots :
0
product web sub-family :
Cloud-enabled monitoring
Redundant :
No
color :
Black
Height :
3.39 in (8.6 cm)
Net Weight :
55.78 lb(US) (25.3 kg)
Mounting Location :
Front
Mounting preference :
Lower
Mounting Mode :
Rack-mounted
Two post mountable :
0
USB compatible :
Yes
Efficiency at full load :
85...136 V adjustable
93...130 V
Input Frequency :
50/60 Hz +/- 3 Hz auto-sensing
Harmonic distortion :
Less than 5%
Maximum configurable power in VA :
1440 VA
Max Configurable Power (Watts) :
900 W
Transfer Time :
6ms typical : 10ms maximum
Topology :
Line Interactive
Wave type :
Sine wave
Output Frequency (sync to mains) :
50/60 Hz +/- 3 Hz sync to mains
Product Certifications :
cULus
ENERGY STAR V2.0 (USA)
Equipment protection policy :
Lifetime : $150000
Acoustic level :
45 dBA
heat dissipation :
225 Btu/h
Operating altitude :
0...10000 ft
Ambient Air Temperature for Operation :
32…104 °F (0…40 °C)
Ambient Air Temperature for Storage :
5…113 °F (-15…45 °C)
Relative Humidity :
0…95 %
Storage Relative Humidity :
0…95 %
Free slots :
0
Surge energy rating :
680 J
Discount Schedule :
APC1
GTIN :
731304322757
Returnability :
No
Country of origin :
PH
Unit Type of Package 1 :
PCE
Number of Units in Package 1 :
1
Package 1 Height :
9.25 in (23.5 cm)
Package 1 Width :
24.02 in (61 cm)
Package 1 Length :
23.23 in (59 cm)
Package 1 Weight :
63.96 lb(US) (29.01 kg)
