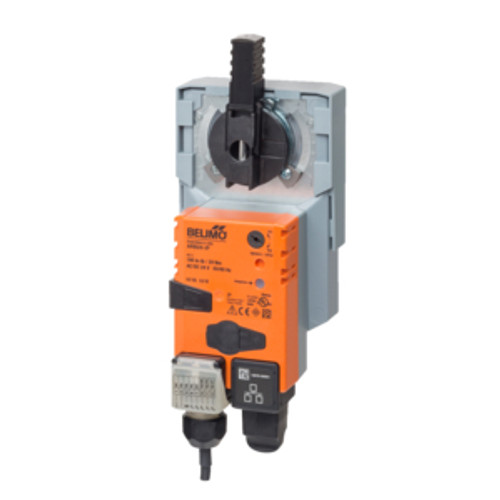

Valve Actuator, Non fail-safe, AC/DC 24 V, modulating, communicative, Hybrid, Cloud, BACnet IPModbus TCP
- Voltage AC/DC : AC/DC 24 V
- Power Consumption (Running) : 6 W
- Power Consumption (Holding) : 3 W
- Power Consumption For Wire Sizing : 8 VA
- Torque : 20 Nm
- Control Type : Communicative ; BACnet IP ; Modbus TCP ; Cloud
- Direction Of Motion Motor : selectable with switch 0/1
- Manual Override : External push button
- Angle of Rotation : 90
- Running Time (Motor) : 150 s / 90°
- Running Time range (Motor) : 70...220 s
- Protection category : IP54
- Degree Of Protection NEMA : NEMA 1
- Enclosure Type : UL Enclosure Type 1
- Ambient Tempreture : -22...122°F [-30...50°C]
