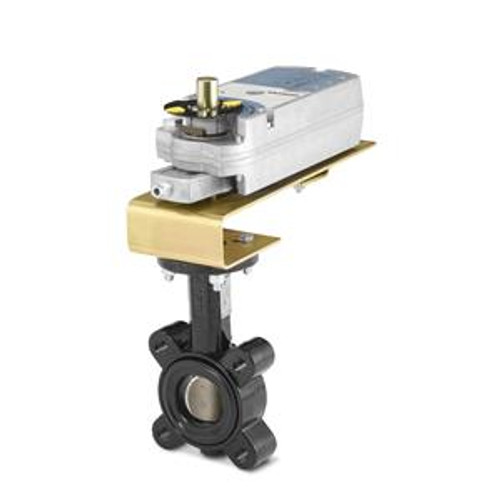

B203FC-GIB131.3U - Standard Temp Commercial Butterfly Valve Assembly, 2-way, 3-inch, 175 psi, Non-Spring Return, Normally Closed, 24 Vac, Floating
Technical Specifications:
- Valve Size: 3 in
- Flow Coefficient, Cv: 154
- Valve Type: Two-way
- Valve Body Style: Rotary-Butterfly
- Port Configuration: 2-Way Normally closed
- End Connection: Lug
- Trim Material: Stainless Steel
- Butterfly Disc: Full Cut Disc
- Butterfly Heater: NO
- Medium: Water , Water with anti-freeze
- Max GPM: 662 gpm
- Pressure Class: ANSI 125
- High temperature: NO
- Max. Inlet Pressure (absolute), Liquid: 250 psi
- Medium temperature: -20…250 ºF
- Close-off Pressure: 175 psi
- Valve Actuator Type: Electronic
- Control Signal: Floating control
- Fail Safe: No
- Supply Voltage: 24 VAC
- Auxiliary Switch: No
- Standard: NEMA 2
Product Literature:
- Download product literature 1
- Download product literature 2
- Download product literature 3
- Download product literature 4
Brand: Siemens
SKU: B203FC-GIB131.3U
