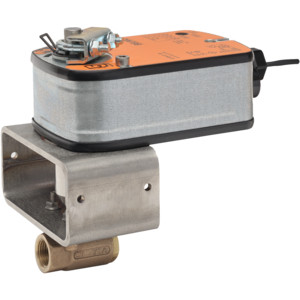

Ball Valve (VS), 1/2", 2-way, Cv 4 Valve Actuator, Spring return, AC/DC 24 V, On/OffActuator fitted
- Pattern : 2-way
- Cv : 4
- Body Pressure Rating : 600 psig WOG
- Flow characteristic {Tools} : Modified equal percentage
- End Fitting : Internal thread
- Trim : Stainless steel
- Valve Size : 0.5" [15]
- Voltage AC/DC : AC/DC 24 V
- Power Consumption (Running) : 5 W
- Power Consumption (Holding) : 2.5 W
- Power Consumption For Wire Sizing : 7 VA
- Control Type : On/Off
- Protection category : IP54
- Degree Of Protection NEMA : NEMA 2
- Enclosure Type : UL Enclosure Type 2
