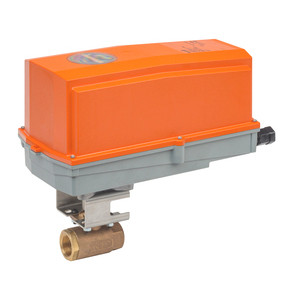

Ball Valve (VSS), 1/2", 2-way, Cv 15 Valve Actuator, Non fail-safe, AC 100...240 V, modulating, NEMA 4XActuator fitted
- Pattern : 2-way
- Cv : 15
- Body Pressure Rating : 2000 psig WOG
- Flow characteristic {Tools} : Modified equal percentage
- End Fitting : Internal thread
- Trim : Stainless steel
- Valve Size : 0.5" [15]
- Voltage AC/DC : AC 100...240 V
- Power Consumption (Running) : 6 W
- Power Consumption (Holding) : 2 W
- Control Type : DC 2...10 V
- Protection category : IP66/67
- Degree Of Protection NEMA : NEMA 4X
- Enclosure Type : UL Enclosure Type 4X
