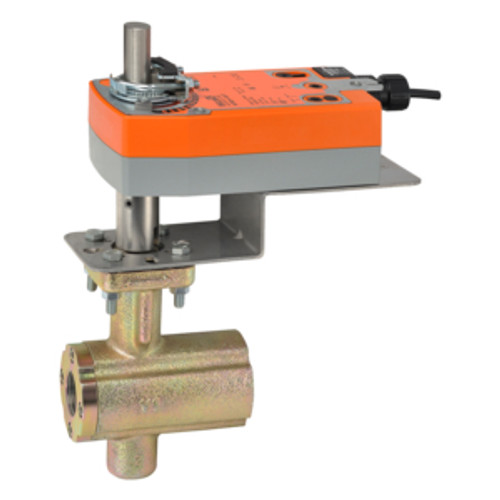

Ball Valve (VB), 1 1/2", 2-way, ANSI Class 300, Cv 55 Valve Actuator, Spring return, AC/DC 24 V, On/OffActuator fitted
- ANSI Class : 300
- Pattern : 2-way
- Cv : 55
- Body Pressure Rating : ANSI Class 300
- Flow characteristic {Tools} : Equal percentage
- End Fitting : Internal thread
- Trim : Stainless steel
- Valve Size : 1.5" [40]
- Voltage AC/DC : AC/DC 24 V
- Power Consumption (Running) : 6 W
- Power Consumption (Holding) : 2.5 W
- Power Consumption For Wire Sizing : 8.5 VA
- Control Type : On/Off
- Protection category : IP54
- Degree Of Protection NEMA : NEMA 2
- Enclosure Type : UL Enclosure Type 2
