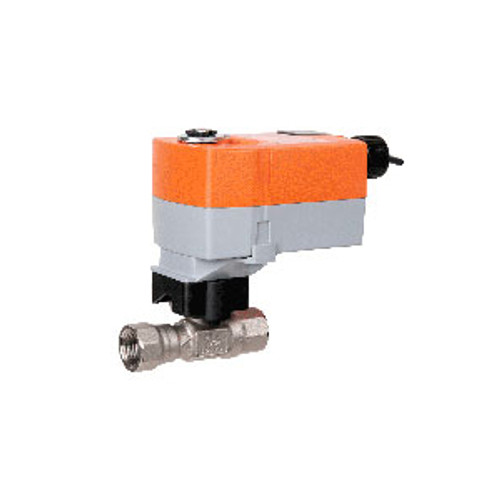

Characterized Control Valve (HTCCV), 1/2", 2-way, Cv 1.16 ConfigurableValve Actuator, Spring return, AC/DC 24 V, On/Off, 1x SPDTActuator fitted
- Pattern : 2-way
- Cv : 1.16
- Body Pressure Rating : 600 psi
- Flow characteristic {Tools} : Equal percentage
- End Fitting : Internal thread
- Trim : Stainless steel
- Valve Size : 0.5" [15]
- Voltage AC/DC : AC/DC 24 V
- Power Consumption (Running) : 2 W
- Power Consumption (Holding) : 1.3 W
- Power Consumption For Wire Sizing : 5 VA
- Auxiliary Switches : 1x SPDT
- Control Type : On/Off
- Protection category : IP42
- Degree Of Protection NEMA : NEMA 2
- Enclosure Type : UL Enclosure Type 2
