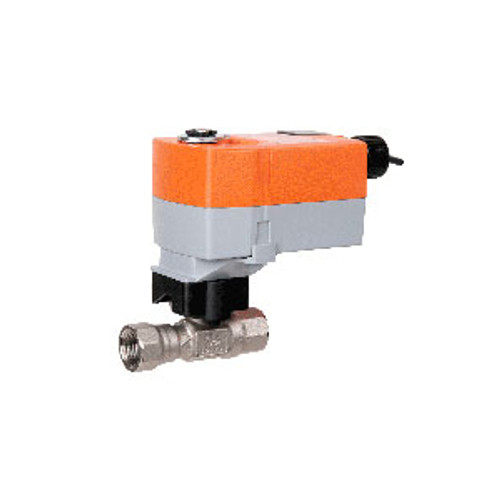

Characterized Control Valve (HTCCV), 1/2", 2-way, Cv 1.16 Valve Actuator, Spring return, AC/DC 24 V, 2...10 V, ModulatingActuator fitted
- Pattern : 2-way
- Cv : 1.16
- Body Pressure Rating : 600 psi
- Flow characteristic {Tools} : Equal percentage
- End Fitting : Internal thread
- Trim : Stainless steel
- Valve Size : 0.5" [15]
- Voltage AC/DC : AC/DC 24 V
- Power Consumption (Running) : 2.5 W
- Power Consumption (Holding) : 1 W
- Power Consumption For Wire Sizing : 4 VA
- Control Type : DC 2...10 V
- Protection category : IP42
- Degree Of Protection NEMA : NEMA 2
- Enclosure Type : UL Enclosure Type 2
