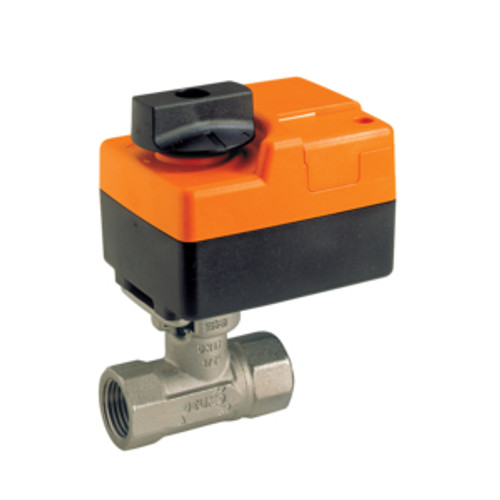

Characterized Control Valve (CCV), 3/4", 2-way, Cv 7.4 Valve Actuator, Non fail-safe, AC 24 V, On/Off, 18 GA plenum cable, 16 ft [5 m]Actuator fitted
- Pattern : 2-way
- Cv : 7.4
- Body Pressure Rating : 600 psi
- Flow characteristic {Tools} : Equal percentage
- End Fitting : Internal thread
- Trim : Chrome plated brass
- Valve Size : 0.75" [20]
- Voltage AC/DC : AC 24 V
- Power Consumption (Running) : 1 W
- Power Consumption For Wire Sizing : 1 VA
- Control Type : Floating/3-point
- Protection category : IP40
- Degree Of Protection NEMA : NEMA 1
- Enclosure Type : UL Enclosure Type 1
