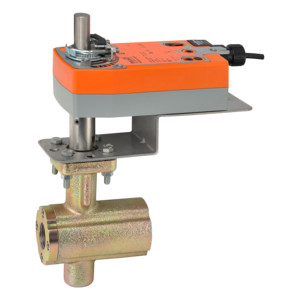

Ball Valve (VB), 2", 2-way, ANSI Class 300, Cv 77 Valve Actuator, Spring return, AC 24...240 V / DC 24...125 V, On/OffActuator fitted
- ANSI Class : 300
- Pattern : 2-way
- Cv : 77
- Body Pressure Rating : ANSI Class 300
- Flow characteristic {Tools} : Equal percentage
- End Fitting : Internal thread
- Trim : Stainless steel
- Valve Size : 2" [50]
- Voltage AC/DC : AC 24...240 V / DC 24...125 V
- Power Consumption (Running) : 7 W
- Power Consumption (Holding) : 3.5 W
- Power Consumption For Wire Sizing : 18 VA
- Control Type : On/Off
- Protection category : IP54
- Degree Of Protection NEMA : NEMA 2
- Enclosure Type : UL Enclosure Type 2
