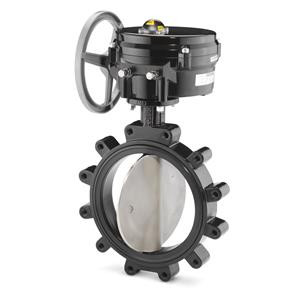

B224FO-HA266.41K - High Temp Industrial Butterfly Valve Assembly, 2-way, 24-inch, 150 psi, 120 Vac, 0-10 Vdc, Heater, Normally Open
Technical Specifications:
- Valve Size: 24 in
- Flow Coefficient, Cv: 11040
- Valve Type: Two-way
- Valve Body Style: Rotary-Butterfly
- Port Configuration: 2-Way Normally open
- End Connection: Lug
- Material, valve body: Cast Iron
- Trim Material: Stainless Steel
- Butterfly Disc: Full Cut Disc
- Butterfly Heater: YES
- Butterfly Limit Switch: YES
- Flow Characteristic: Modified Equal-percentage
- Medium: Water , Water with anti-freeze
- Max GPM: 42336 gpm
- Pressure Class: ANSI 125
- High temperature: YES
- Max. Inlet Pressure (absolute), Liquid: 250 psi
- Max. Differential Pressure, Liquid: 29 psi
- Medium temperature: -20…250 ºF
- Close-off Pressure: 150 psi
- Valve Actuator Type: Electronic
- Control Signal: 0...10 Vdc
- Fail Safe: No
- Supply Voltage: 120 VAC
- Auxiliary Switch: Yes
- Standard: NEMA 6P
Product Literature:
- Download product literature 1
- Download product literature 2
- Download product literature 3
- Download product literature 4
Brand: Siemens
SKU: B224FO-HA266.41K
