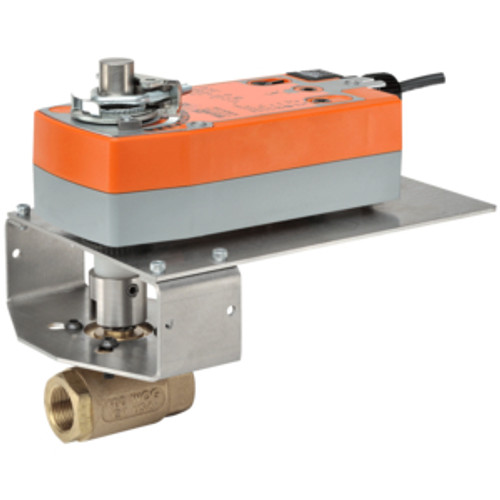

Ball Valve (VSS), 1", 2-way, Cv 43 Valve Actuator, Spring return, AC 24...240 V / DC 24...125 V, On/Off, 2x SPDTActuator fitted
- Pattern : 2-way
- Cv : 43
- Body Pressure Rating : 1500 psig WOG
- Flow characteristic {Tools} : Modified equal percentage
- End Fitting : Internal thread
- Trim : Stainless steel
- Valve Size : 1" [25]
- Voltage AC/DC : AC 24...240 V / DC 24...125 V
- Power Consumption (Running) : 7 W
- Power Consumption (Holding) : 3.5 W
- Power Consumption For Wire Sizing : 18 VA
- Auxiliary Switches : 2x SPDT
- Control Type : On/Off
- Protection category : IP54
- Degree Of Protection NEMA : NEMA 2
- Enclosure Type : UL Enclosure Type 2
