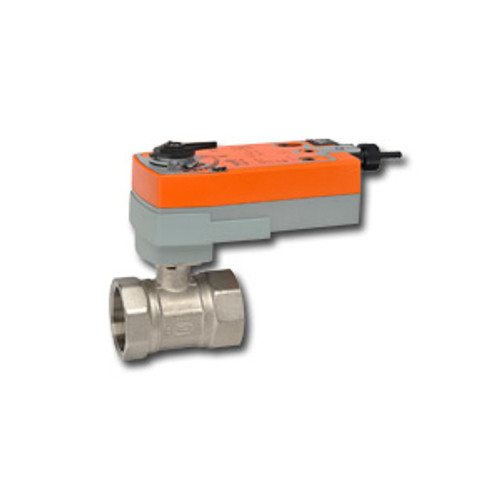

Characterized Control Valve (CCV), 1 1/4", 2-way, Cv 37 ConfigurableValve Actuator, Spring return, AC/DC 24 V, On/Off, 2 x SPDTActuator fitted
- Pattern : 2-way
- Cv : 37
- Body Pressure Rating : 400 psi
- Flow characteristic {Tools} : Equal percentage
- End Fitting : Internal thread
- Trim : Stainless steel
- Valve Size : 1.25" [32]
- Voltage AC/DC : AC/DC 24 V
- Power Consumption (Running) : 5 W
- Power Consumption (Holding) : 2.5 W
- Power Consumption For Wire Sizing : 7.5 VA
- Auxiliary Switches : 2x SPDT
- Control Type : On/Off
- Protection category : IP54
- Degree Of Protection NEMA : NEMA 2
- Enclosure Type : UL Enclosure Type 2
