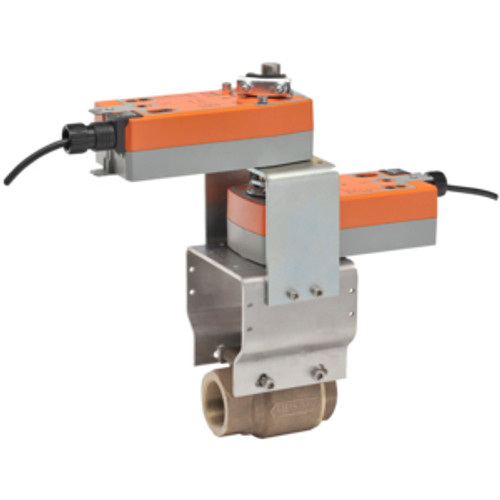

Ball Valve (VS), 1 1/2", 2-way, Cv 84 Valve Actuator, Spring return, AC 24...240 V / DC 24...125 V, On/Off, 2 x SPDTActuator fitted
- Pattern : 2-way
- Cv : 84
- Body Pressure Rating : 600 psig WOG psi
- Flow characteristic {Tools} : Modified equal percentage
- End Fitting : Internal thread
- Trim : Stainless steel
- Valve Size : 1.5" [40]
- Voltage AC/DC : AC 24...240 V / DC 24...125 V
- Power Consumption (Running) : 7.5 W
- Power Consumption (Holding) : 3.5 W
- Power Consumption For Wire Sizing : 36 VA
- Auxiliary Switches : 2x SPDT
- Control Type : On/Off
- Protection category : IP54
- Degree Of Protection NEMA : NEMA 2
- Enclosure Type : UL Enclosure Type 2
