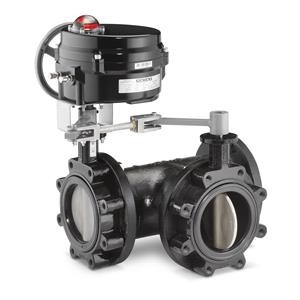

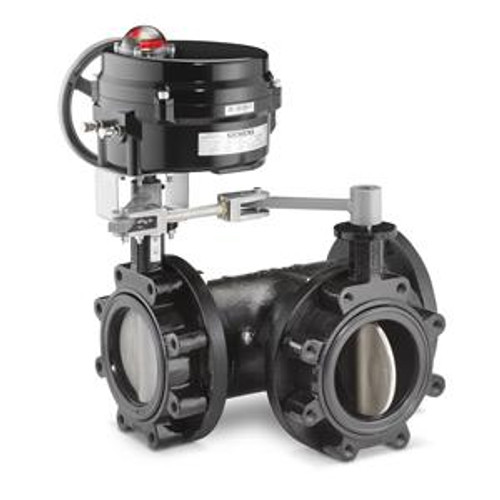

B308UC-HA126.2K - High Temp Industrial Butterfly Valve Assembly, 3-way, 8-inch, 50 psi, 24 Vac, 2 position, Heater, Configuration C
Technical Specifications:
- Valve Size: 8 in
- Flow Coefficient, Cv: 3316
- Valve Type: Three-way
- Valve Body Style: Rotary-Butterfly
- Port Configuration: 3-Way
- End Connection: Lug
- Trim Material: Stainless Steel
- Butterfly Disc: Under Cut Disc
- Configuration details: C
- Butterfly Heater: YES
- Medium: Water , Water with anti-freeze
- Max GPM: 4704 gpm
- Pressure Class: ANSI 125
- High temperature: YES
- Max. Inlet Pressure (absolute), Liquid: 250 psi
- Medium temperature: -20…250 ºF
- Close-off Pressure: 50 psi
- Valve Actuator Type: Electronic
- Control Signal: 2-position
- Fail Safe: No
- Supply Voltage: 24 VAC
- Auxiliary Switch: Yes
- Standard: NEMA 4
Product Literature:
- Download product literature 1
- Download product literature 2
- Download product literature 3
- Download product literature 4
Brand: Siemens
SKU: B308UC-HA126.2K
