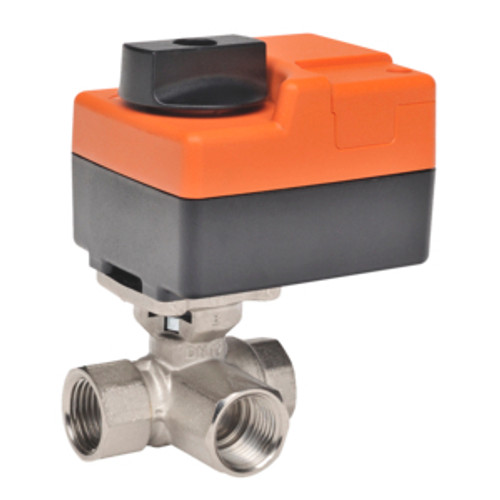

Characterized Control Valve (CCV), 1/2", 3-way, Cv 4.7 Valve Actuator, Non fail-safe, AC 24 V, On/Off, Plenum cable 18 GA, 10 ft [3 m]Actuator fitted
- Pattern : 3-way
- Cv : 4.7
- Body Pressure Rating : 600 psi
- Flow characteristic {Tools} : A – AB: equal percentage; B – AB: linear
- End Fitting : Internal thread
- Trim : Chrome plated brass
- Valve Size : 0.5" [15]
- Voltage AC/DC : AC 24 V
- Power Consumption (Running) : 1 W
- Power Consumption For Wire Sizing : 1 VA
- Control Type : Floating/3-point
- Protection category : IP40
- Degree Of Protection NEMA : NEMA 1
- Enclosure Type : UL Enclosure Type 1
