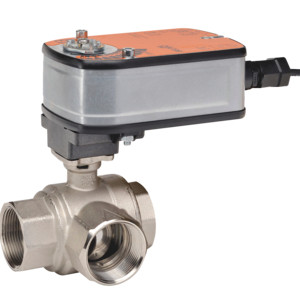

Characterized Control Valve (CCV), 3/4", 3-way, Cv 14 Valve Actuator, Spring return, AC 120 V, On/OffActuator fitted
- Pattern : 3-way
- Cv : 14
- Body Pressure Rating : 600 psi
- Flow characteristic {Tools} : Equal percentage
- End Fitting : Internal thread
- Trim : Stainless steel
- Valve Size : 0.75" [20]
- Voltage AC/DC : AC 120 V
- Power Consumption (Running) : 5.5 W
- Power Consumption (Holding) : 3.5 W
- Power Consumption For Wire Sizing : 7.5 VA
- Control Type : On/Off
- Protection category : IP54
- Degree Of Protection NEMA : NEMA 2
- Enclosure Type : UL Enclosure Type 2
