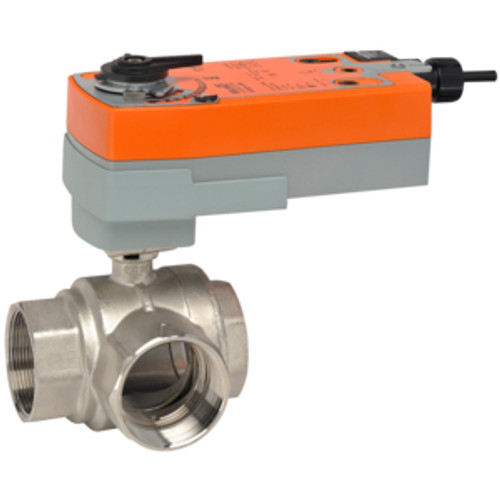

Ball Valve (BV), 1 1/4", 3-way, Cv 34 ConfigurableValve Actuator, Spring return, AC/DC 24 V, 2...10 V, 2 x SPDT, MFT/programmableActuator fitted
- Pattern : 3-way
- Cv : 34
- Body Pressure Rating : 400 psi
- Close-off Pressure : 200 kPa
- Flow characteristic {Tools} : Linear
- End Fitting : Internal thread
- Trim : Chrome plated brass
- Valve Size : 1.25" [32]
- Voltage AC/DC : AC/DC 24 V
- Power Consumption (Running) : 7.5 W
- Power Consumption (Holding) : 3 W
- Power Consumption For Wire Sizing : 10 VA
- Auxiliary Switches : 2x SPDT
- Control Type : MFT/Programmable
- Protection category : IP54
- Degree Of Protection NEMA : NEMA 2
- Enclosure Type : UL Enclosure Type 2
