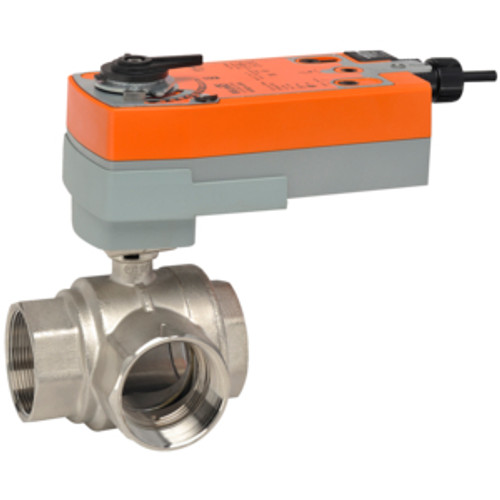

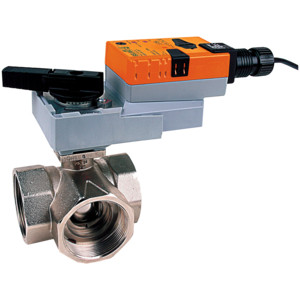

Ball Valve (BV), 2", 3-way, Cv 87 Valve Actuator, Spring return, AC 24...240 V / DC 24...125 V, On/OffActuator fitted
- Pattern : 3-way
- Cv : 87
- Body Pressure Rating : 400 psi
- Flow characteristic {Tools} : Linear
- End Fitting : Internal thread
- Trim : Chrome plated brass
- Valve Size : 2" [50]
- Voltage AC/DC : AC 24...240 V / DC 24...125 V
- Power Consumption (Running) : 7 W
- Power Consumption (Holding) : 3.5 W
- Power Consumption For Wire Sizing : 18 VA
- Control Type : On/Off
- Protection category : IP54
- Degree Of Protection NEMA : NEMA 2
- Enclosure Type : UL Enclosure Type 2
