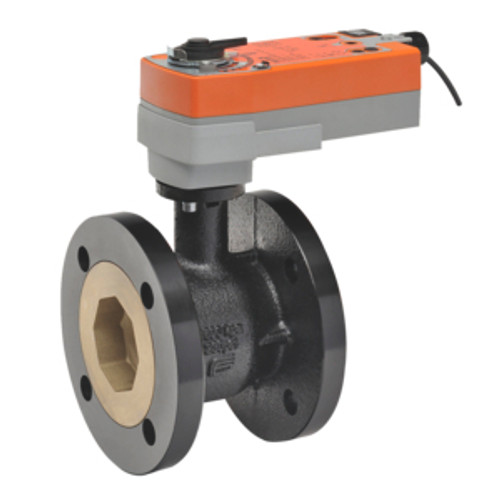

Characterized Control Valve (CCV), 2 1/2", 2-way, ANSI Class 125, Cv 70 ConfigurableValve Actuator, Spring return, AC/DC 24 V, On/Off, 2x SPDTActuator fitted
- ANSI Class : 125
- Pattern : 2-way
- Cv : 70
- Body Pressure Rating : ANSI Class 125, standard class B
- Flow characteristic {Tools} : Equal percentage
- End Fitting : Flange
- Trim : Stainless steel
- Valve Size : 2.5" [65]
- Voltage AC/DC : AC/DC 24 V
- Power Consumption (Running) : 5 W
- Power Consumption (Holding) : 2.5 W
- Power Consumption For Wire Sizing : 7.5 VA
- Auxiliary Switches : 2x SPDT
- Control Type : On/Off
- Protection category : IP54
- Degree Of Protection NEMA : NEMA 2
- Enclosure Type : UL Enclosure Type 2
