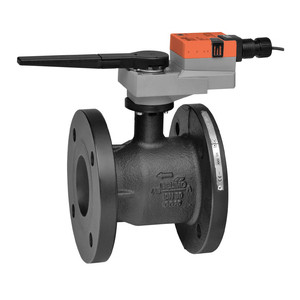

Characterized Control Valve (CCV), 2 1/2", 2-way, ANSI Class 125, Cv 70 ConfigurableValve Actuator, Non fail-safe, AC 100...240 V, On/Off, Floating pointActuator fitted
- ANSI Class : 125
- Pattern : 2-way
- Cv : 70
- Body Pressure Rating : ANSI Class 125, standard class B
- Flow characteristic {Tools} : Equal percentage
- End Fitting : Flange
- Trim : Stainless steel
- Valve Size : 2.5" [65]
- Voltage AC/DC : AC 100...240 V
- Power Consumption (Running) : 3 W
- Power Consumption (Holding) : 0.6 W
- Power Consumption For Wire Sizing : 7 VA
- Control Type : Floating/3-point
- Protection category : IP54
- Degree Of Protection NEMA : NEMA 2
- Enclosure Type : UL Enclosure Type 2
