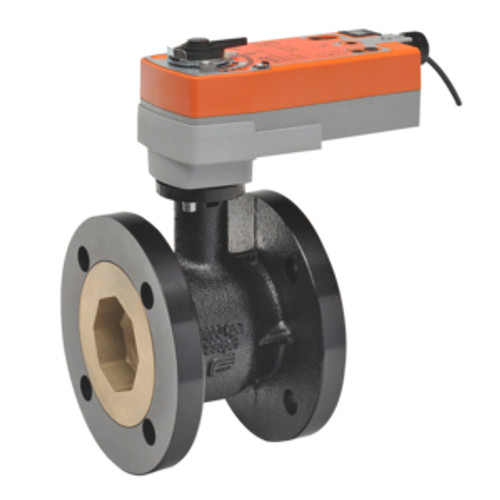

Characterized Control Valve (CCV), 3", 2-way, ANSI Class 125, Cv 110 ConfigurableValve Actuator, Spring return, AC 24...240 V / DC 24...125 V, On/OffActuator fitted
- ANSI Class : 125
- Pattern : 2-way
- Cv : 110
- Body Pressure Rating : ANSI Class 125, standard class B
- Flow characteristic {Tools} : Equal percentage
- End Fitting : Flange
- Trim : Stainless steel
- Valve Size : 3" [80]
- Voltage AC/DC : AC 24...240 V / DC 24...125 V
- Power Consumption (Running) : 7 W
- Power Consumption (Holding) : 3.5 W
- Control Type : On/Off
- Protection category : IP54
- Degree Of Protection NEMA : NEMA 2
- Enclosure Type : UL Enclosure Type 2
