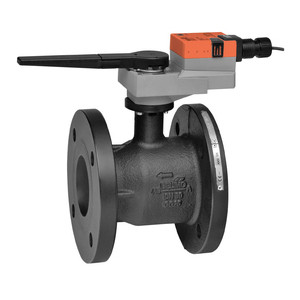

Characterized Control Valve (CCV), 3", 2-way, ANSI Class 125, Cv 110 ConfigurableValve Actuator, Non fail-safe, AC/DC 24 V, On/Off, Floating point, 1 x SPDTActuator fitted
- ANSI Class : 125
- Pattern : 2-way
- Cv : 110
- Body Pressure Rating : ANSI Class 125, standard class B
- Flow characteristic {Tools} : Equal percentage
- End Fitting : Flange
- Trim : Stainless steel
- Valve Size : 3" [80]
- Voltage AC/DC : AC/DC 24 V
- Power Consumption (Running) : 2.5 W
- Power Consumption (Holding) : 0.5 W
- Power Consumption For Wire Sizing : 5.5 VA
- Auxiliary Switches : 1 x SPDT
- Control Type : Floating/3-point
- Protection category : IP54
- Degree Of Protection NEMA : NEMA 2
- Enclosure Type : UL Enclosure Type 2
