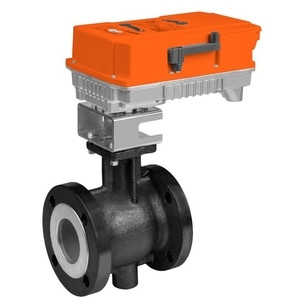

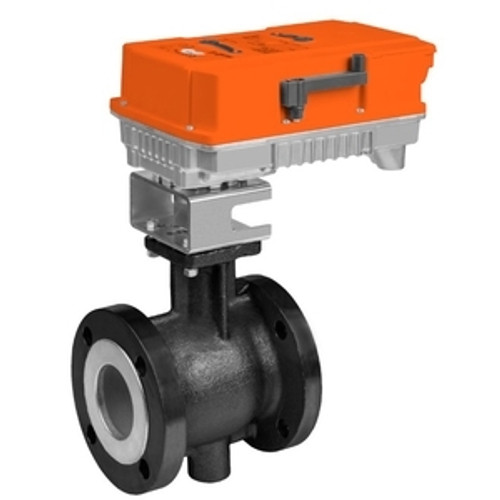

Ball Valve (VB), 3", 2-way, ANSI Class 150, Cv 207 ConfigurableValve Actuator, Non fail-safe, AC 24...240 V / DC 24...125 V, 2...10 V, 2 x SPDT, terminals, BACnet MS/TPModbus RTUMP-Bus, MFT/programmableActuator fitted
- ANSI Class : 150
- Pattern : 2-way
- Cv : 207
- Body Pressure Rating : ANSI Class 150
- Flow characteristic {Tools} : Equal percentage
- End Fitting : Flange
- Trim : Stainless steel
- Valve Size : 3" [80]
- Voltage AC/DC : AC 24...240 V / DC 24...125 V
- Power Consumption (Running) : 20 W
- Power Consumption (Holding) : 6 W
- Power Consumption For Wire Sizing : with 24 V 20 VA / with 240 V 52 VA
- Auxiliary Switches : 2x SPDT
- Control Type : MFT/Programmable
- Protection category : IP66/67
- Degree Of Protection NEMA : NEMA 4X
- Enclosure Type : UL Enclosure Type 4X
