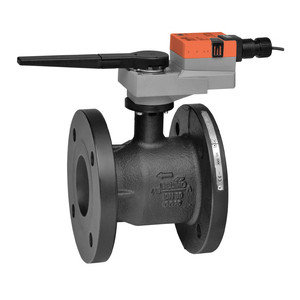

2 X 2-3/32 NC GP 20/F W AC
Technical Specifications:
- ANSI Class: 125
- Pattern: 2-way
- Cv: 290
- Fluid: Chilled or hot water, up to 60% glycol
- Body Pressure Rating: ANSI Class 125, standard class B
- Flow characteristic {Tools}: Equal percentage
- End Fitting: Flange
- Trim: Stainless steel
- Valve Size: 5"" [125]
- Voltage AC/DC: AC/DC 24 V
- Power Consumption (Running): 4 W
- Power Consumption (Holding): 2 W
- Power Consumption For Wire Sizing: 6 VA
- Control Type: Floating/3-point
- Protection category: IP54
- Degree Of Protection NEMA: NEMA 2
- Enclosure Type: UL Enclosure Type 2
Product Literature:
- Download product literature 1
- Download product literature 2
- Download product literature 3
- Download product literature 4
- Download product literature 5
- Download product literature 6
Brand: Belimo
SKU: B6500S-290+GRX24-3
