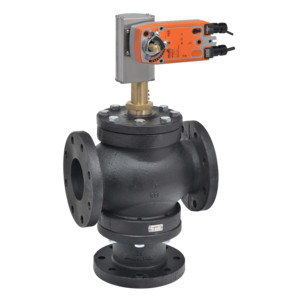

Globe Valve (GV), 2 1/2", 3-way, ANSI Class 125, Cv 68 ConfigurableValve Actuator, Spring return, AC/DC 24 V, 0...135 Ω, MFT/programmableActuator fitted
Technical Specifications:
- ANSI Class: 125
- Pattern: 3-way
- Cv: 68
- Fluid: Chilled or hot water, up to 60% glycol
- Body Pressure Rating: ANSI Class 125, up to 175 psi below 150°F
- Flow characteristic {Tools}: Linear
- End Fitting: Flange
- Trim: Bronze
- Valve Size: 2.5" [65]
- Voltage AC/DC: AC/DC 24 V
- Power Consumption (Running): 7.5 W
- Power Consumption (Holding): 3 W
- Power Consumption For Wire Sizing: 10 VA
- Control Type: 0...135 Ω
- Protection category: IP54
- Degree Of Protection NEMA: NEMA 2
- Enclosure Type: UL Enclosure Type 2
Product Literature:
- Download product literature 1
- Download product literature 2
- Download product literature 3
- Download product literature 4
- Download product literature 5
- Download product literature 6
Brand: Belimo
SKU: G765D+AFX24-MFT95-X1
