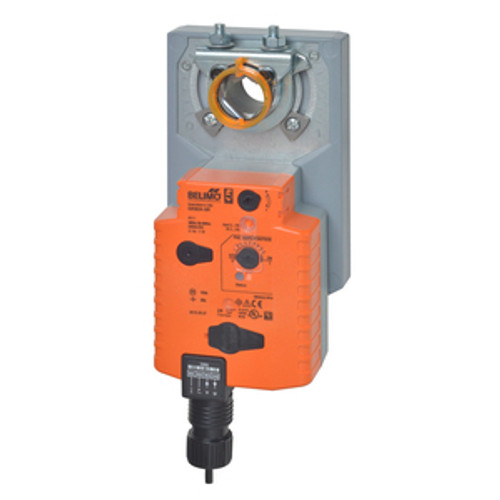

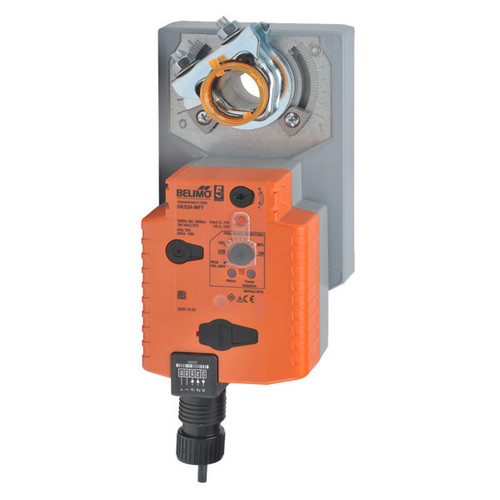

Damper Actuator, 360 in-lb [40 Nm], Electrical fail-safe, AC/DC 24 V, MFT/programmable, 2...10 V
- Voltage AC/DC : AC/DC 24 V
- Power Consumption (Running) : 11 W
- Power Consumption (Holding) : 3 W
- Power Consumption For Wire Sizing : 21 VA
- Torque : 360 in-lb [40 Nm]
- Control Type : MFT/Programmable
- Direction Of Motion Motor : selectable with switch 0/1
- Direction of Rotation (Fail-Safe) : Reversible with switch
- Manual Override : External push button
- Angle of Rotation : 95
- Running Time (Motor) : 150 s / 90°
- Running Time range (Motor) : 90...150 s
- Running Time (Fail-safe) : <35 s
- Protection category : IP54
- Degree Of Protection NEMA : NEMA 2
- Enclosure Type : UL Enclosure Type 2
- Ambient Tempreture : -22...122°F [-30...50°C]
