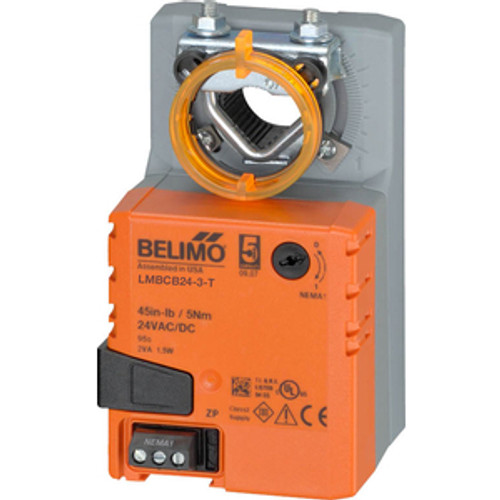

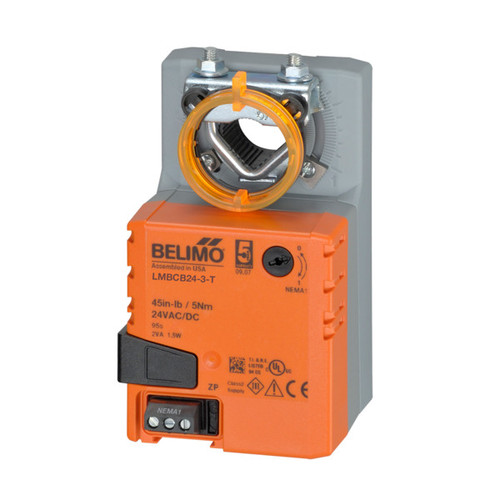

Damper Actuator, 45 in-lb [5 Nm], Non fail-safe, AC/DC 24 V, On/Off, Floating point, terminals
- Voltage AC/DC : AC/DC\xa024\xa0V
- Power Consumption (Running) : 1.5 W
- Power Consumption (Holding) : 0.2 W
- Power Consumption For Wire Sizing : 3 VA
- Torque : 45\xa0in-lb [5\xa0Nm]
- Control Type : Floating/3-point
- Direction Of Motion Motor : selectable with switch 0/1
- Manual Override : External push button
- Angle of Rotation : 95
- Running Time (Motor) : 35\xa0s / 90°
- Protection category : IP20
- Degree Of Protection NEMA : NEMA\xa01
- Enclosure Type : UL\xa0Enclosure\xa0Type\xa01
- Ambient Temperature : -22...122°F [-30...50°C]
