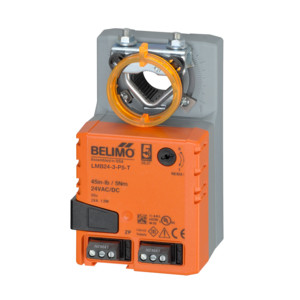

ConfigurableDamper Actuator, 45 in-lb [5 Nm], Non fail-safe, AC/DC 24 V, On/Off, Floating point, terminals
Technical Specifications:
- Actuator Type: Non fail-safe
- Angle of Rotation: 95
- Control Type: Floating/3-point
- Degree of Protection: IP20, NEMA 1, UL Enclosure Type 1
- Electrical Connection: terminals
- Manual Override: External push button
- Power Consumption (Holding): 0.2 W
- Power Consumption (Running): 1.5 W
- Running Time (Motor): Default 95 s, variable 35, 45, 60, 150 s, constant, independent of load
- Running Time range (Motor): 35, 45, 60, 150 s
- Safety Function: NO
- Shaft Diameter: 1/4...5/8" round, centers on 5/8", 3/4" clamp available
- Torque: 45 in-lb [5 Nm]
- Voltage AC/DC: AC/DC 24 V
Product Literature:
- Download product literature 1
- Download product literature 2
- Download product literature 3
- Download product literature 4
- Download product literature 5
Brand: Belimo
SKU: LMX24-3-P5-T
