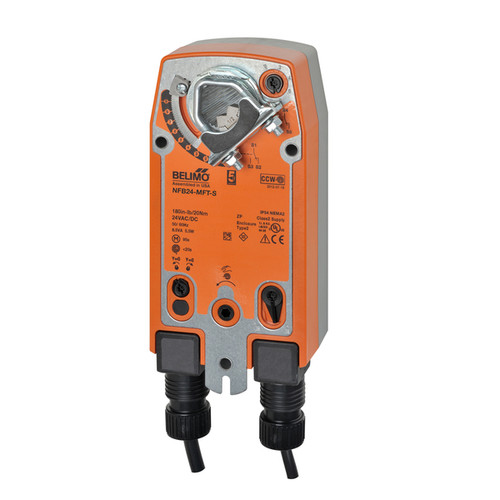

Damper Actuator, 90 in-lb [10 Nm], Spring return, AC/DC 24 V, MFT/programmable, 2x SPDT, 2...10 V
Technical Specifications:
- Voltage AC/DC: AC/DC\xa024\xa0V
- Power Consumption (Running): 6.5 W
- Power Consumption (Holding): 3 W
- Power Consumption For Wire Sizing: 9 VA
- Auxiliary Switches: 2x SPDT
- Torque: 90\xa0in-lb [10\xa0Nm]
- Control Type: MFT/Programmable
- Direction Of Motion Motor: selectable with switch 0/1
- Direction of Rotation (Fail-Safe): Reversible with cw/ccw mounting
- Manual Override: 5 mm hex crank (3/16" Allen), supplied
- Angle of Rotation: 95
- Running Time (Motor): 150\xa0s / 90°
- Running Time range (Motor): 40...150\xa0s
- Running Time (Fail-safe): <20 s
- Protection category: IP54
- Degree Of Protection NEMA: NEMA\xa02
- Enclosure Type: UL\xa0Enclosure\xa0Type\xa02
- Ambient Temperature: -22...122°F [-30...50°C]
Product Literature:
- Download product literature 1
- Download product literature 2
- Download product literature 3
- Download product literature 4
- Download product literature 5
- Download product literature 6
- Download product literature 7
- Download product literature 8
- Download product literature 9
Brand: Belimo
SKU: NFB24-MFT-S
