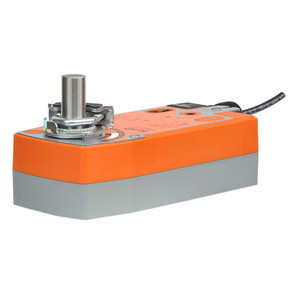

Valve Actuator, Spring return, AC/DC 24 V, 2...10 V, 2x SPDT, modulating
Technical Specifications:
- Voltage AC/DC: AC/DC\xa024\xa0V
- Power Consumption (Running): 3.5 W
- Power Consumption (Holding): 2.5 W
- Power Consumption For Wire Sizing: 6 VA
- Auxiliary Switches: 2x SPDT
- Torque: 10\xa0Nm
- Control Type: DC\xa02...10\xa0V
- Direction Of Motion Motor: selectable with switch 0/1
- Direction of Rotation (Fail-Safe): Reversible with cw/ccw mounting
- Manual Override: 5 mm hex crank (3/16" Allen), supplied
- Angle of Rotation: 95
- Running Time (Motor): 95\xa0s / 90°
- Running Time (Fail-safe): <20 s
- Protection category: IP54
- Degree Of Protection NEMA: NEMA\xa02
- Enclosure Type: UL\xa0Enclosure\xa0Type\xa02
Product Literature:
Brand: Belimo
SKU: NFB24-SR-S-X1
