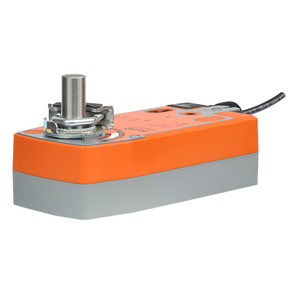

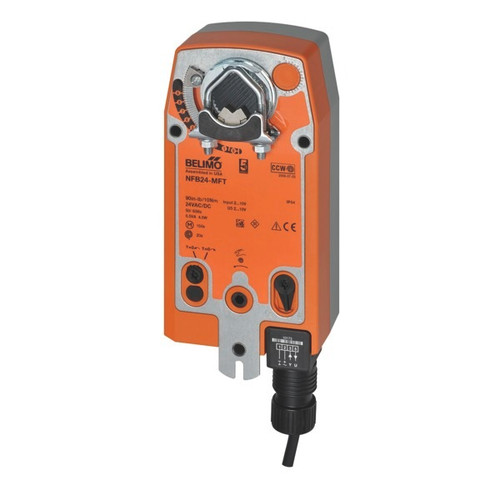

Valve Actuator, Spring return, AC 24...240 V / DC 24...125 V, On/Off
Technical Specifications:
- Voltage AC/DC: AC\xa024...240\xa0V / DC\xa024...125\xa0V
- Power Consumption (Running): 6 W
- Power Consumption (Holding): 2.5 W
- Power Consumption For Wire Sizing: 9.5 VA
- Torque: 10\xa0Nm
- Control Type: On/Off
- Direction Of Motion Motor: selectable by ccw/cw mounting
- Direction of Rotation (Fail-Safe): Reversible with cw/ccw mounting
- Manual Override: 5 mm hex crank (3/16" Allen), supplied
- Angle of Rotation: 95
- Running Time (Motor): 75\xa0s / 90°
- Running Time (Fail-safe): <20 s
- Protection category: IP54
- Degree Of Protection NEMA: NEMA\xa02
- Enclosure Type: UL\xa0Enclosure\xa0Type\xa02
Product Literature:
Brand: Belimo
SKU: NFBUP-X1
