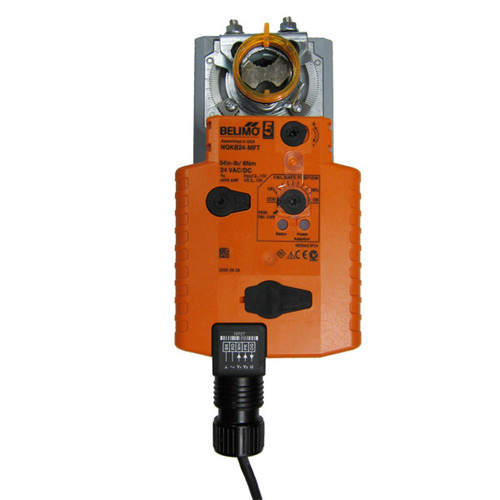

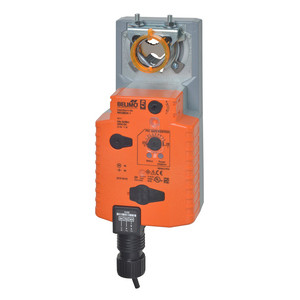

Damper Actuator, 54 in-lb [6 Nm], Electrical fail-safe, AC/DC 24 V, On/Off
- Voltage AC/DC : AC/DC\xa024\xa0V
- Power Consumption (Running) : 11 W
- Power Consumption (Holding) : 3 W
- Power Consumption For Wire Sizing : 22 VA
- Torque : 54\xa0in-lb [6\xa0Nm]
- Control Type : On/Off
- Direction Of Motion Motor : selectable with switch 0/1
- Direction of Rotation (Fail-Safe) : Reversible with switch
- Manual Override : External push button
- Angle of Rotation : 95
- Running Time (Motor) : 4\xa0s / 90°
- Running Time (Fail-safe) : <4 s
- Protection category : IP54
- Degree Of Protection NEMA : NEMA\xa02
- Enclosure Type : UL\xa0Enclosure\xa0Type\xa02
- Ambient Temperature : -22...122°F [-30...50°C]
